Spesifikasi Corolla Altis
| Dimensi | |
| Overall Panjang/Length | 4,630 |
| Overall Lebar/Width | 1,780 |
| Overall Tinggi/Height | 1,435 |
| Jarak Poros Roda/Wheelbase | 2,700 |
| Jarak Pijak/Tread (Depan/Front) | 1,531 |
| Jarak Pijak/Tread (Belakang / Rear) | 1,544 |
| Chasis | |
| Transmisi/Transmission Type | 7-Speed CVT |
| Suspensi Depan/Front Suspension | MacPherson Strut |
| Suspensi Belakang/Rear Suspension | Double Wishbone |
| Rem Depan/Front Brake | Ventilated Disc |
| Rem Belakang/Rear Brake | Solid Disc |
| Sistem Rem Tambahan/Additional Brake System | ABS + EBD + BA + VSC + HSA |

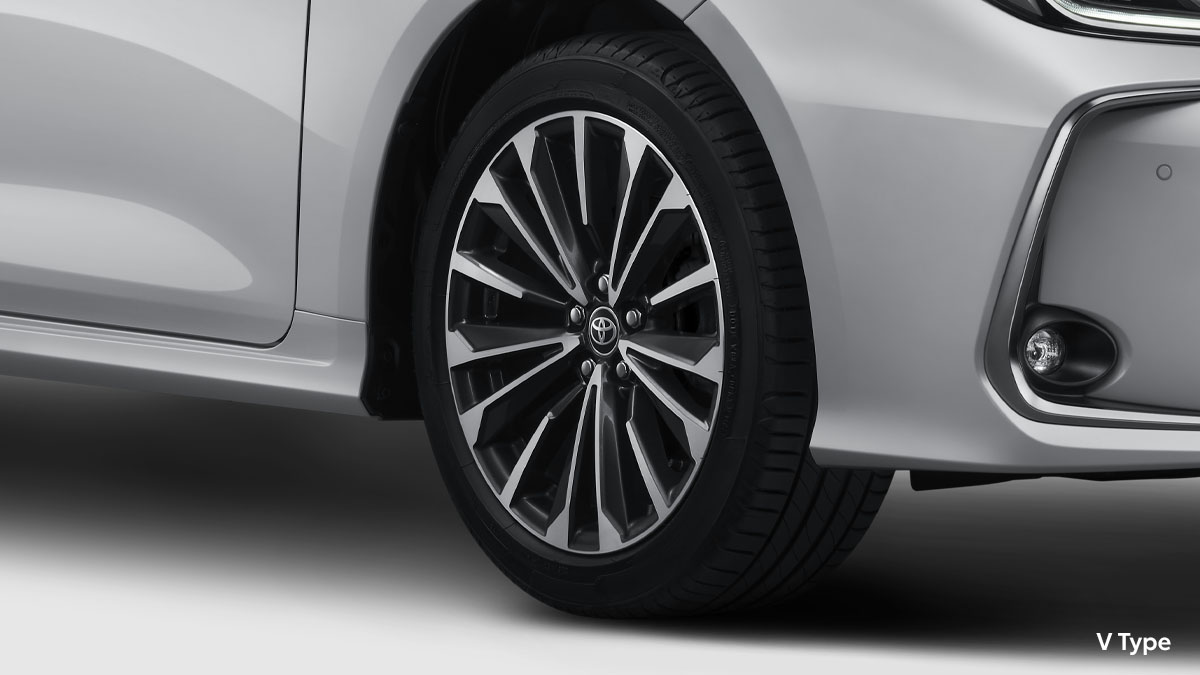

| Ukuran Ban/Tires Size | 205/55 R17 |
| Mesin | |
| Tipe Mesin/Engine Type | 4 – Cylinder In-Line, 16 – Valve DOHC with Dual VVT-i |
| Isi Silinder/Displacement (Cc) | 1.798 |
| Diameter X Langkah/Bore X Stroke (Mm) | 80.5 x 88.3 |
| Daya Maksimum/Maximum Output (Ps/Rpm) | 140/6,400 |
| Torsi Maksimum/Maximum Torque (Kgm/Rpm) | 17.5/4,000 |
| Sistem Pemasukan Bahan Bakar/Fuel System | EFI |
| Bahan Bakar/Fuel | Gasoline |
| Kapasitas Tangki/Fuel Capacity (Liter) | 50 |
*Spesifikasi merupakan Spesifikasi tipe tertinggi
